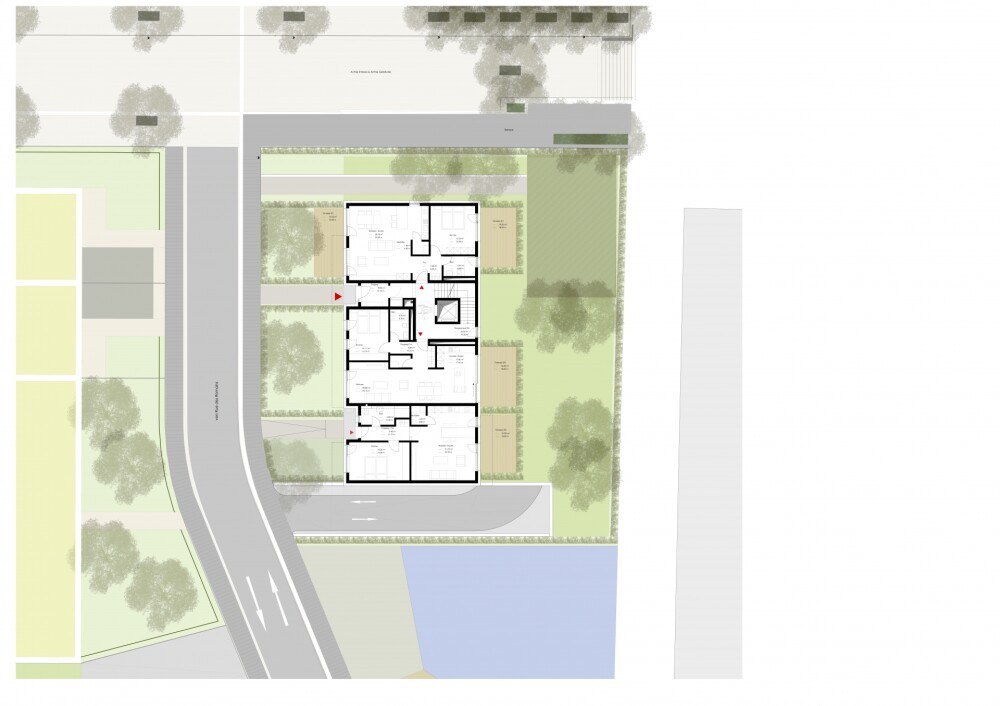

Carpel 4 – residential building, Strassen (LUX)

Residence

New construction of a residential building with 9 residential units and an underground car park with 12 parking places

Privat

gfa 828 m²

07 / 2013

Living


project New construction of a residential building with 9 residential units and an underground car park with 12 parking places client privet architecture complete planning phase WW+, Esch-sur-Alzette/Trier (LUX/GER) gfa 828 m² volume 3.336 m³ total area 1.095 m² net construction costs 1.990.000 € total gross costs 2.415.000 € start of planning 07/2013 realisation 2015 - expexcted 2017



Concept

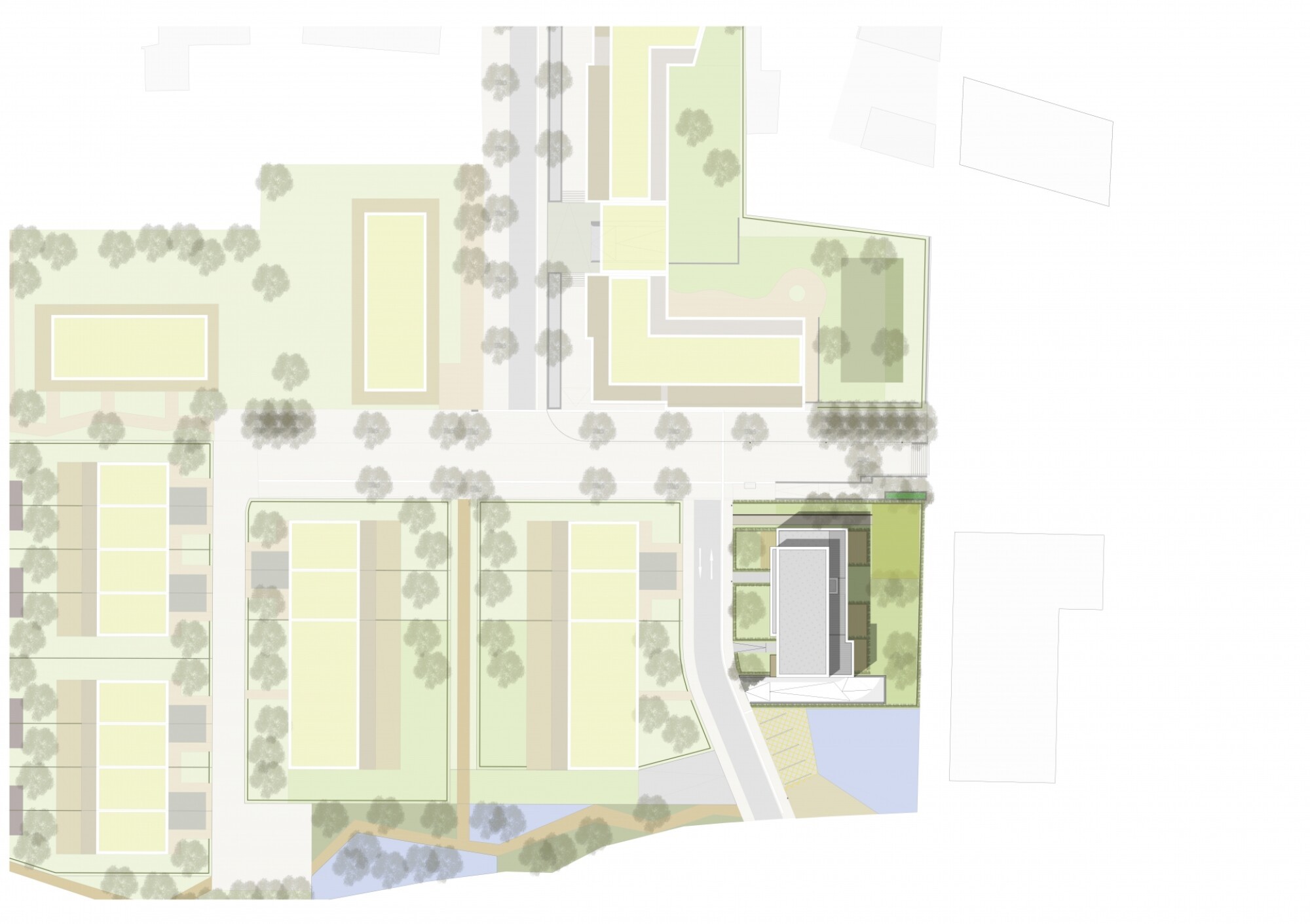

The residential building is located in the “Wunnen am Duerf” area. The building houses 9 residential units and 12 underground parking spaces as well as a children’s playground.



Construction principle, materials and sustainability

The load-bearing structure features reinforced concrete walls and ceilings. The partition walls within the storeys are made of drywall for reasons of increased flexibility. The building features a plaster façade with the ground floor in a different colour. The ground-floor cladding is a high-pressure decorative laminate.



Energy concept

The building is clad with a thermal insulation system. Heating is achieved via gas condensing boilers and an additional solar thermal system is installed on the roof for the central hot water provision. Each residential and commercial unit will have a ventilation system with high heat recovery.

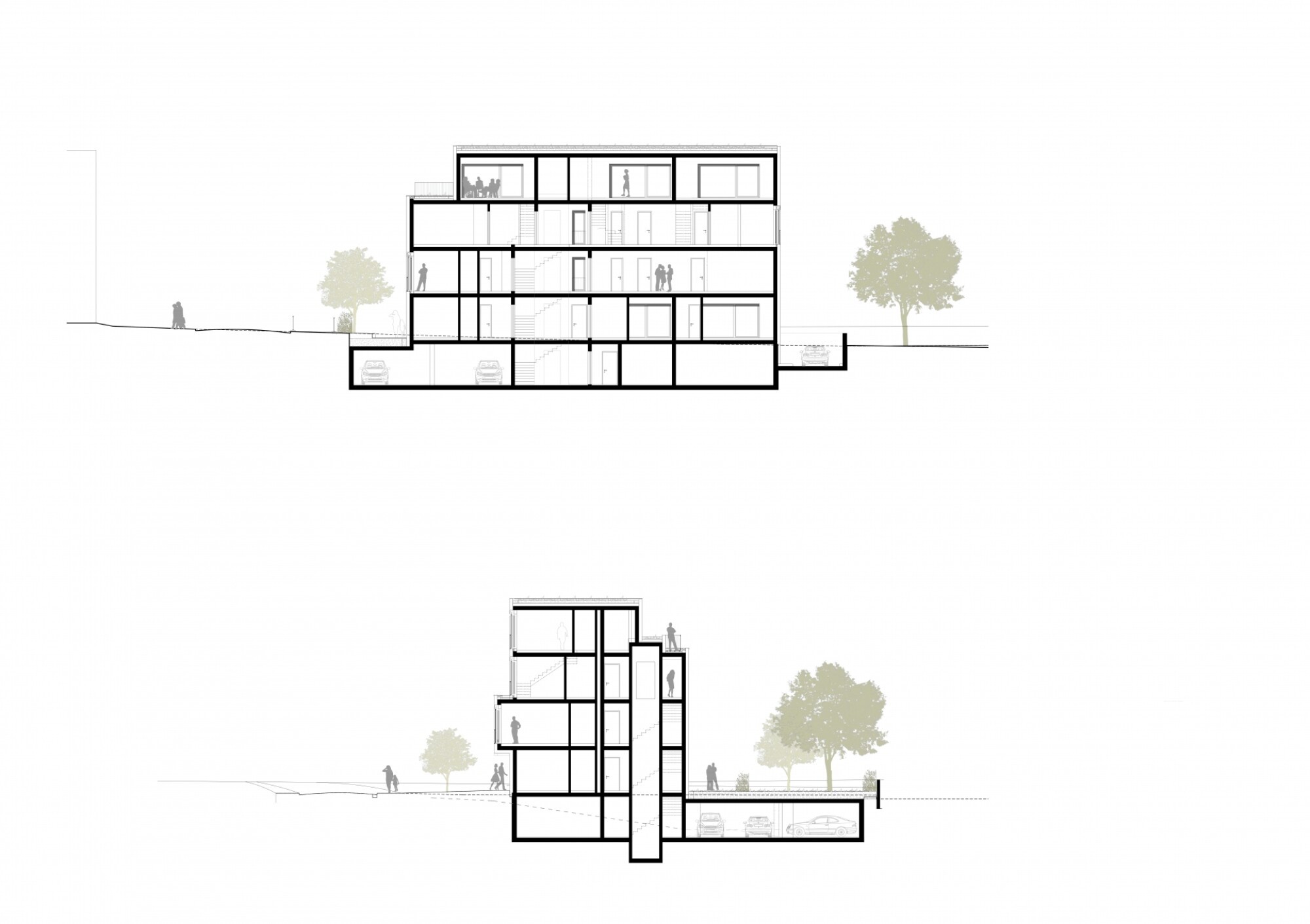

Carpel 4 Strassen  Ansichten

Carpel 4 – residential building, Strassen (LUX)

Residence
Carpel 1-Strassen Perspektive

Carpel 1 - residential and commercial building, Strassen (LUX)

Residence
Residence_Kenn

Residence, Kenn (GER)

Residence
Zita Senior Capellen 01

Senior living, Capellen (LUX)

Residence
Solarix Roesee Ext 003

Solarix, Roeser (LUX)

Living
Sozial Schnell Gut 04

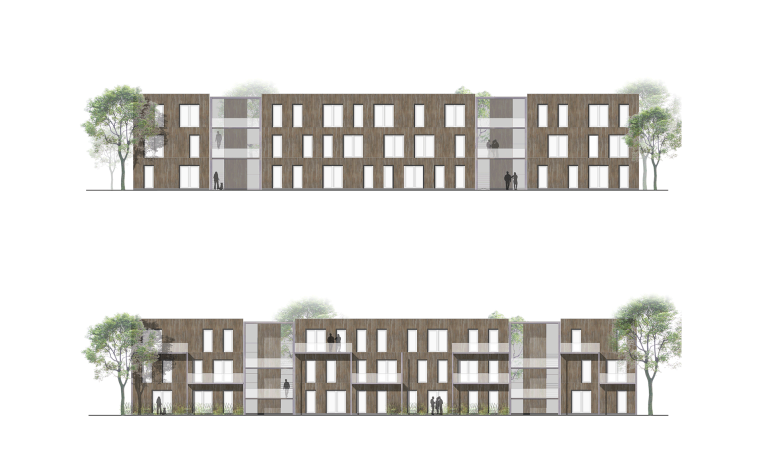

Idea competition for affordable housing, Rheinland-Pfalz (D)
